Switchgears

“Right Engineering pioneers in manufacturing of switchgears upto 36 kV with wide experience over 18years.”

Manufacturing Product range ...

Medium Voltage Panel (3.3 kV up to 36 kV)

Low Voltage Main Distribution Panel (LV.MDP)

Sub Distrubution Panel (S.D.P)

Automatic Main Failure Panel (A.M.F)

Distribution Pump Panel

Distribution Lighting Panel

Motor Control Center

Fixed type (Standard)

Draw Out Type (Single & Double Module)

Capacitor Bank Panel

Synchronizing Panel

Automatic Transfer Switch Panel (A.T.S) & Control Panels

Control & Relay Panel upto 400kV

The entire range of products have been fully type tested and constructed as per relevant IEC/IS.

LIGHTING POLES

“Right Engineering manufacture lighting poles for various applications:”

Product range ...

Industrial Roads, Commercial Roads, Highways

Industrial Building, Commercial buildings, Industrial accommodation campuses Sports Stadiums, Airports, Yards

Right Engineering manufacture variety of stepped tubular poles and octagonal poles depending on the project specification and needs

Construction of material for stepped tubular poles:

Steel Tubular Poles (Tensile Strength 410 MPa / 540 MPa)

Galvanizing to standards IS 4759 / BS 729 / BSENISO 1461

Construction of material for Octagonal / Polygonal Poles

Materials used for Octagonal / Polygonal steel poles is as per BS EN 10025 or equivalent of appropriate grade having yield strength of min 355 N/mm2 and Tensile strength of 490 to 630 N/mm2

The column is constructed from Mild Steel plates cut and folded to form Octagonal or Polygonal section. * Up to 12 mtrs are supplied in single section.

Pole above 12 mtr is supplied in minimum of 3 sections, telescopic Jointed and fillet welded with the exception of site joints.

A door is provided in the base of the pole to have clear access to equipments.

The Base Flange with welded connection to the mast fully develops the strength of the section. In addition, supplementary gussets are provided between foundation bolt holes

The Mast is delivered to site in sections and joined with stressing equipments thus forming a sleeve joint

CABLE TRAYS

“Right Engineering are pioneer in cable tray manufacturing for the past 18 years. Right Engineering offer two side rail system in a variety of materials and finishes.”

Product features ...

Industrial Roads, Commercial Roads, Highways

Cable trays are fabricated in mild steel, pre-galvanised steel, Hot dip galvanized and painted with required Enamel or powder coated.

We also provide FRP Cable Trays according to the project requirement The flanges can be manufactured as per project specifications.

We also manufacture accessories such as clamps, connecting pieces, slotted angles

Types of Cable Trays: Perforated, Ladder, Ducts, Cable Ducts, Angle Ladder, Solid Bottom Tray

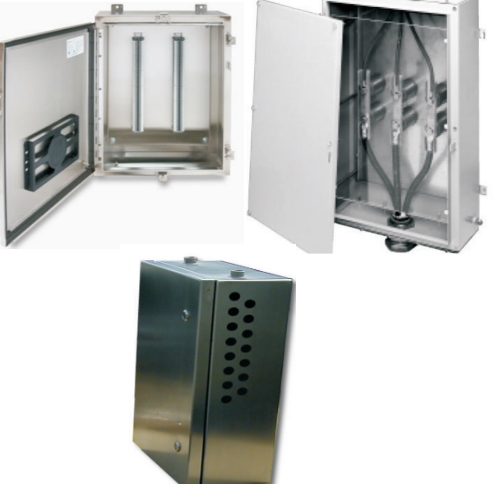

JUNCTION BOXES

“Right Engineering manufacturers high quality Junction Boxes.”

The following are the types of Junction Boxes being manufactured...

* Multiway Junction Box * Multiway Distribution Junction Box

Construction of materials:

CRCA / MS

Stainless Steel (SS 304/ 316)

Fiber Glass Reinforced Polyseter

Cast Aluminium Lm6 Alloy

Area of classification

Safe Area (Weather Proof)

Increased Safety (Exe)

Hazardous Area (Exd) Explosion Proof

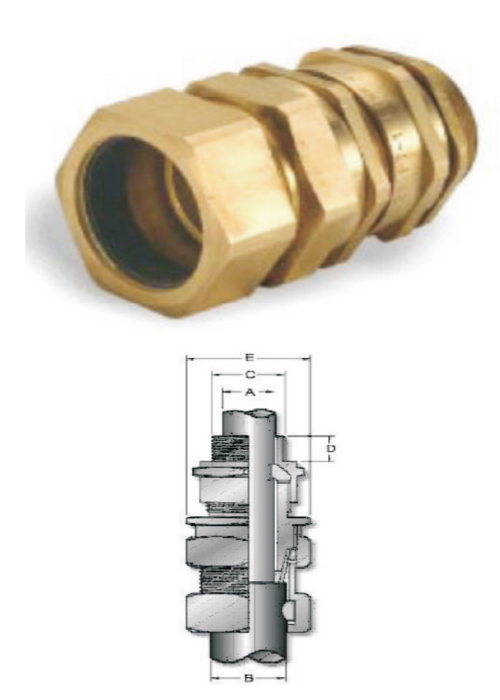

Cable Glands

“Right Engineering manufactures Cable Glands to the International Standard according to BS 6121 to accommodate the internationally manufactured cable sizes”

Type of Cable Glands...

a) Industrial Double Compression

b) Commercial Single Compression

c) Weatherproof

d) Explosionproof (Exd)

e) Flameproof EExd and Increased Safety EExe

Material of Construction

a) Brass Nickel Plated

b) Stainless Steel - (SS 316/304)

c) Aluminium

d) Polyamide
